Beok CCT-10 Underfloor Heating Hub Controller for 230V Thermostat and Actuators 8 Way Heating Circuit Distributor

Precio actualizado: el Feb 19,2026 04:39:52 UTC

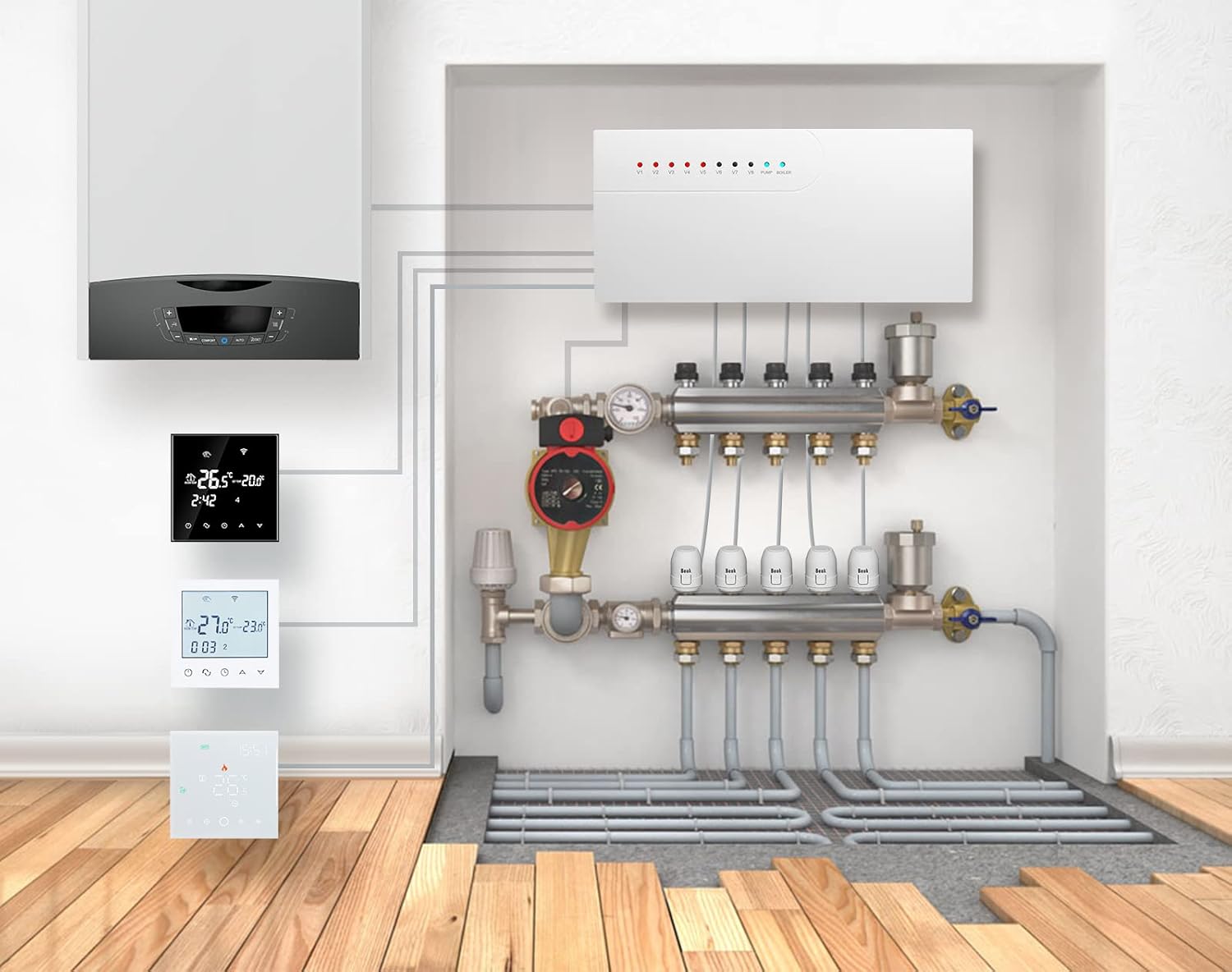

CCT-10 central junction box is suitable for floor heating system. It can receive the control signal from the ambient temperature controller to control the actuator of the corresponding floor heating circuit. At the same time, it also has a power link control module and a power link control module, which can respectively control the external water pump (or mixing unit, main valve, etc.). and boiler (or heat pump, etc.). with external control function.
The concentrator controller is used to regulate the gas boiler, circulation pump or electric actuator to achieve comfortable temperature control and reduce energy consumption.

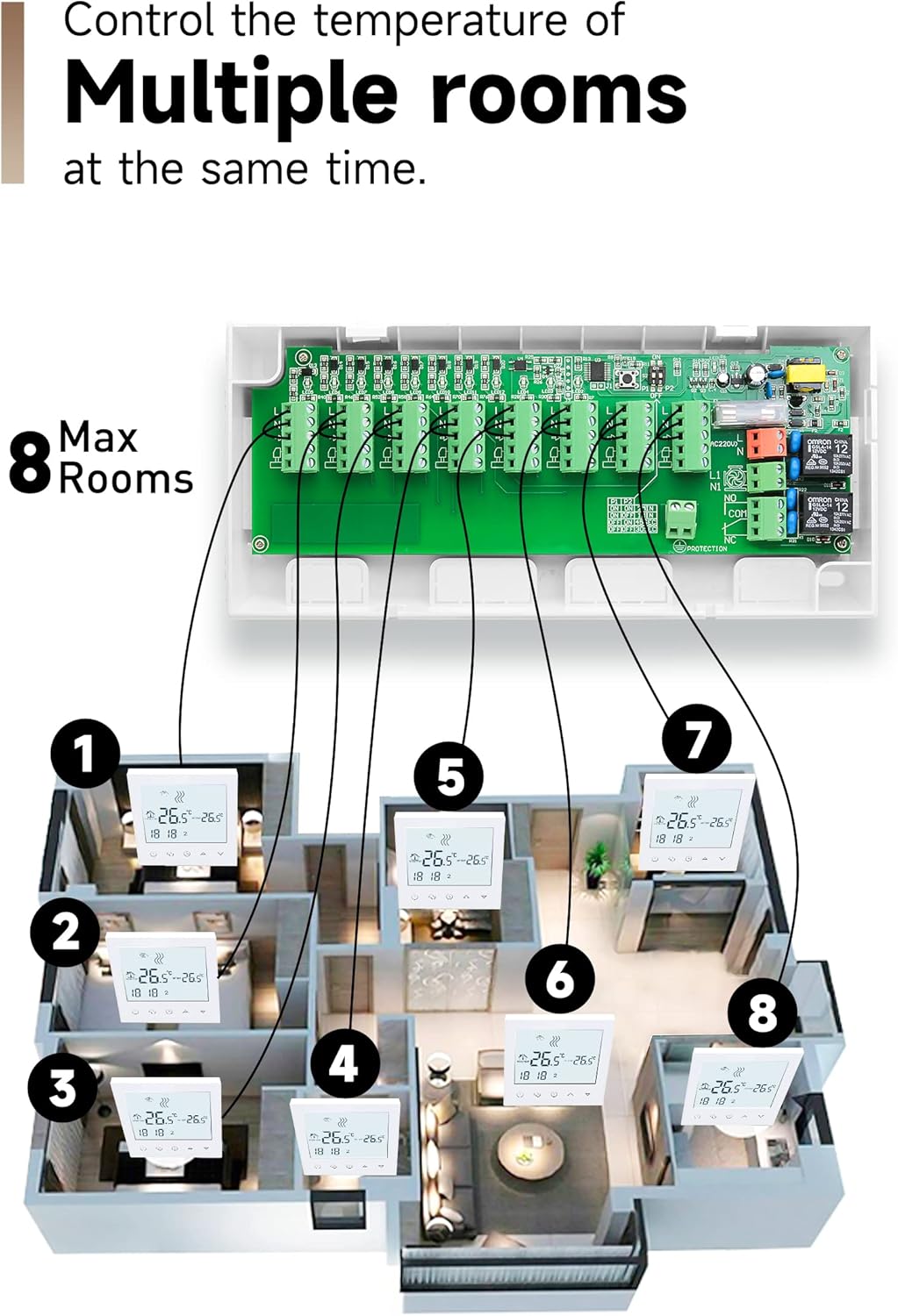

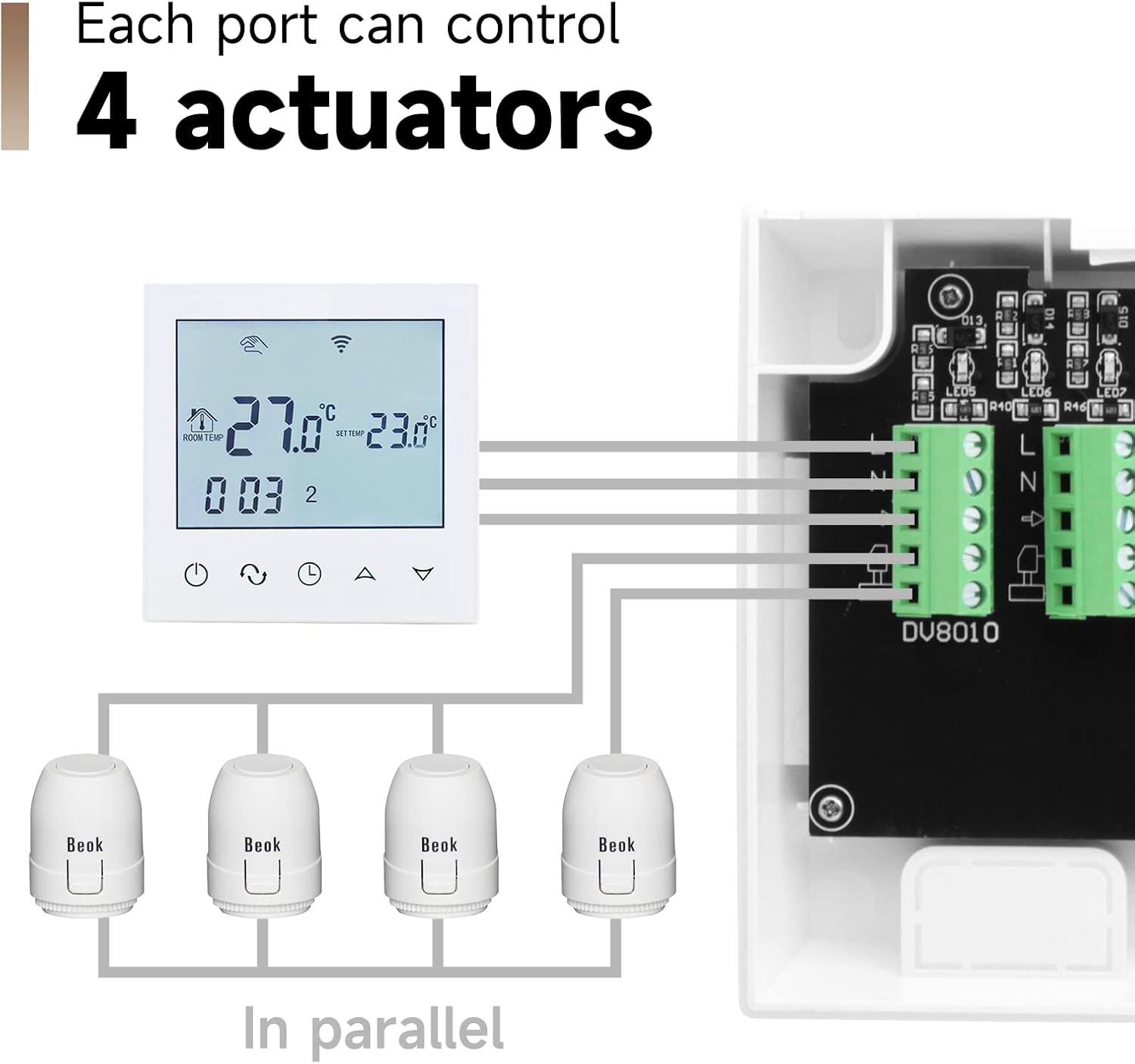

Compatible with up to 8-way floor heating thermostats and actuators. Various installation options, suitable for various occasions.

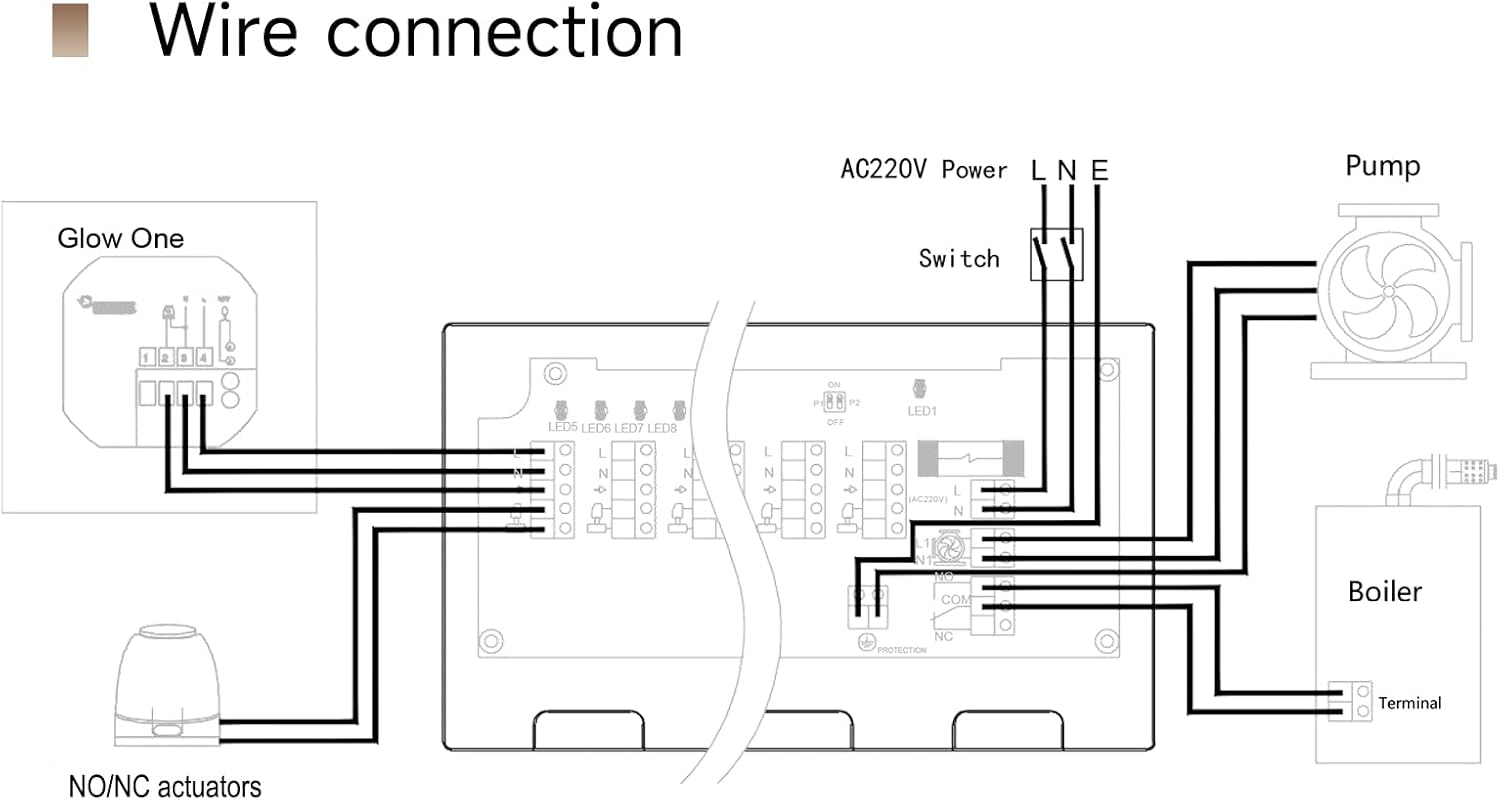

With AC 220V power supply, you can directly power the temperature controller and external water pump with convenient wiring.

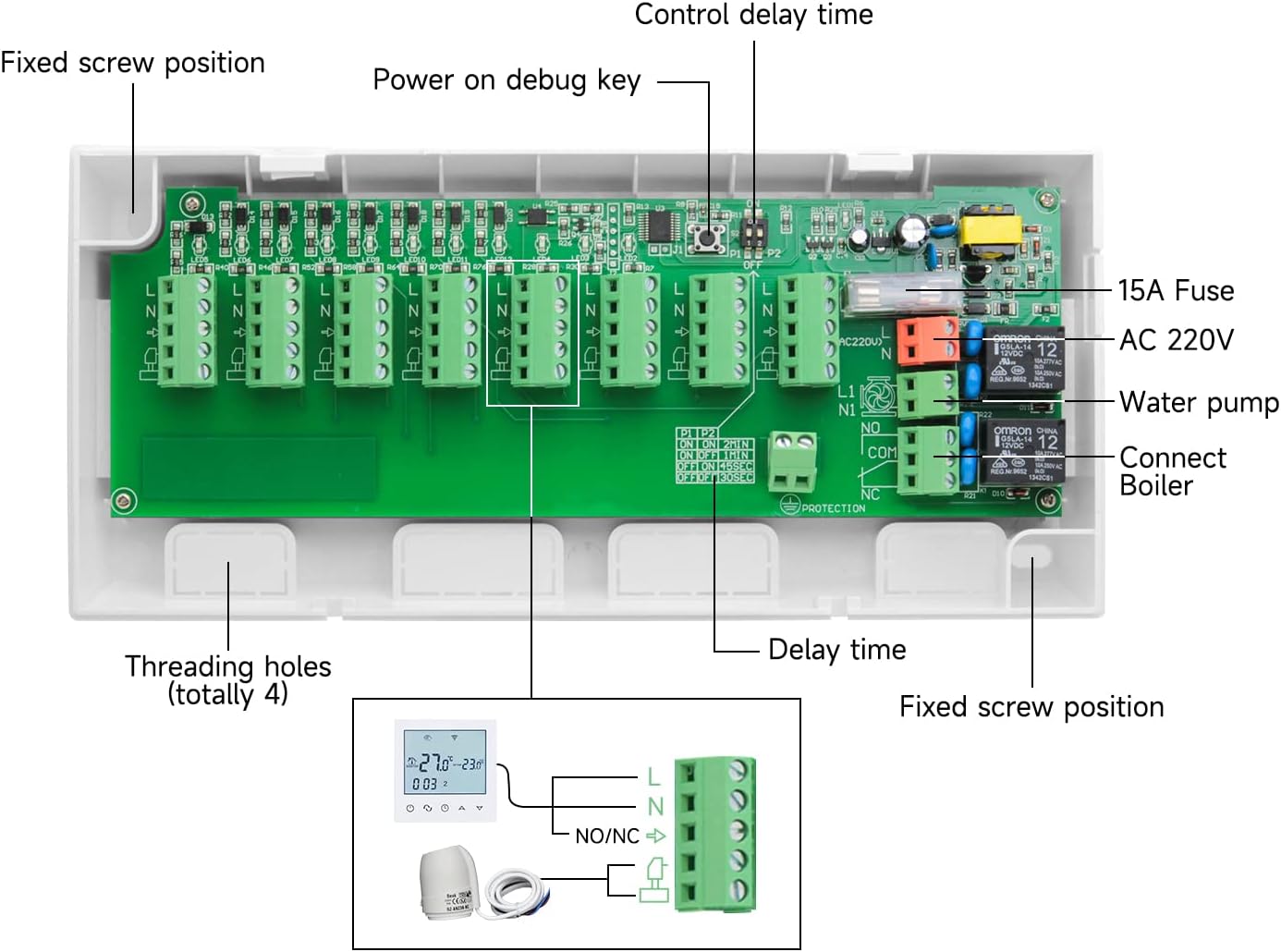

For common electric actuators in underfloor heating systems, it specifically sets the start delay for rod control due to the long opening time. Delay time can be set for different actuators.

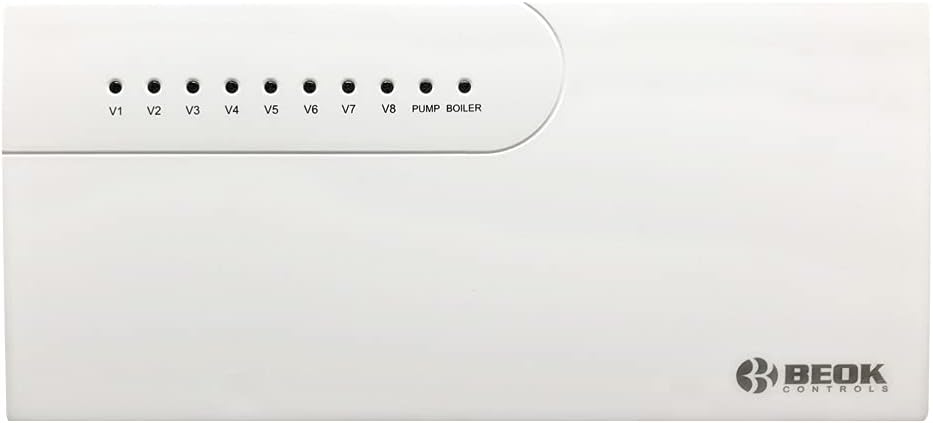

Each circuit, each link water pump and each boiler are equipped with an indicator light, which makes the working conditions clear and convenient for inspection.
